Component interpretation
Source:vignettes/component-interpretation.Rmd
component-interpretation.RmdThis workflow interprets one molecular layer measured on canonical biological samples. Registered strategies cover independent cross-sectional samples and independent destructive-sampling time courses. Repeated-subject time courses require their own subject-aware strategy and are not silently treated as independent. Every result remains exploratory.
The workflow separates five actions:
-
associate_metadata()stores raw, adjusted, and resampled evidence. -
plot()renders the stored decision surface without changing it. -

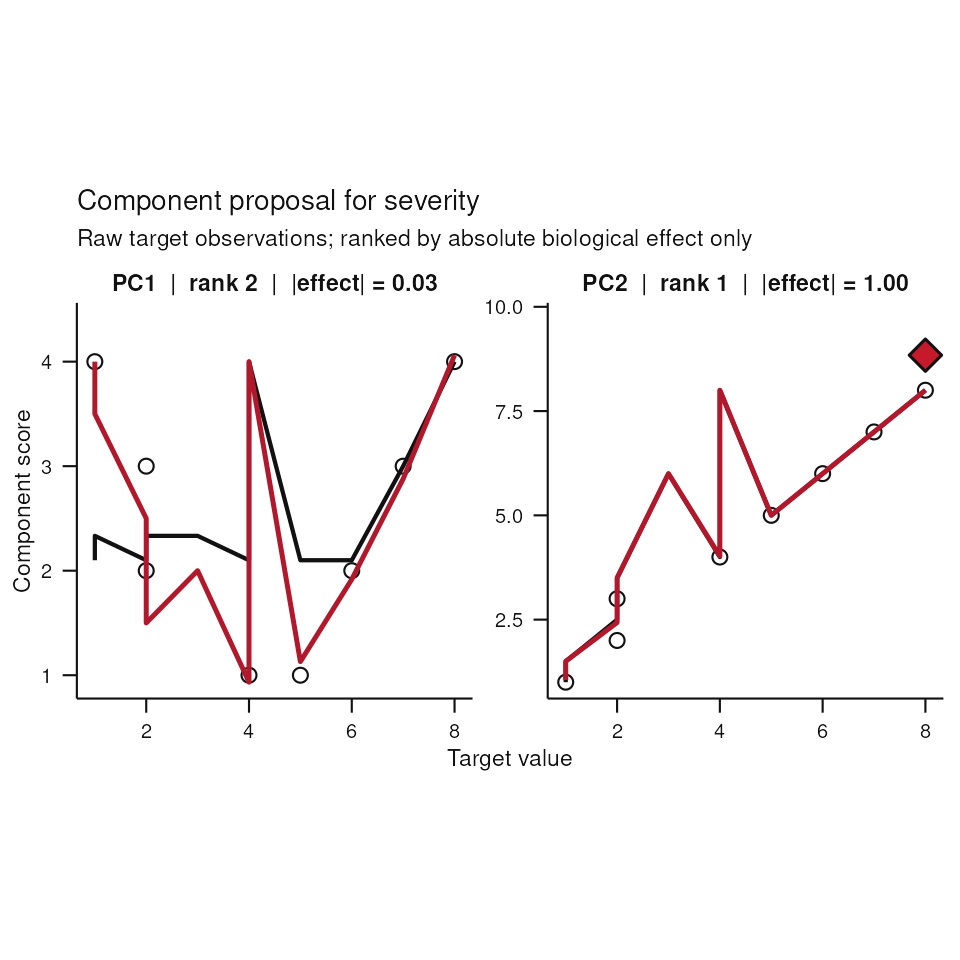

propose_component()ranks only the predeclared effect and may compute a search-aware permutation null. -

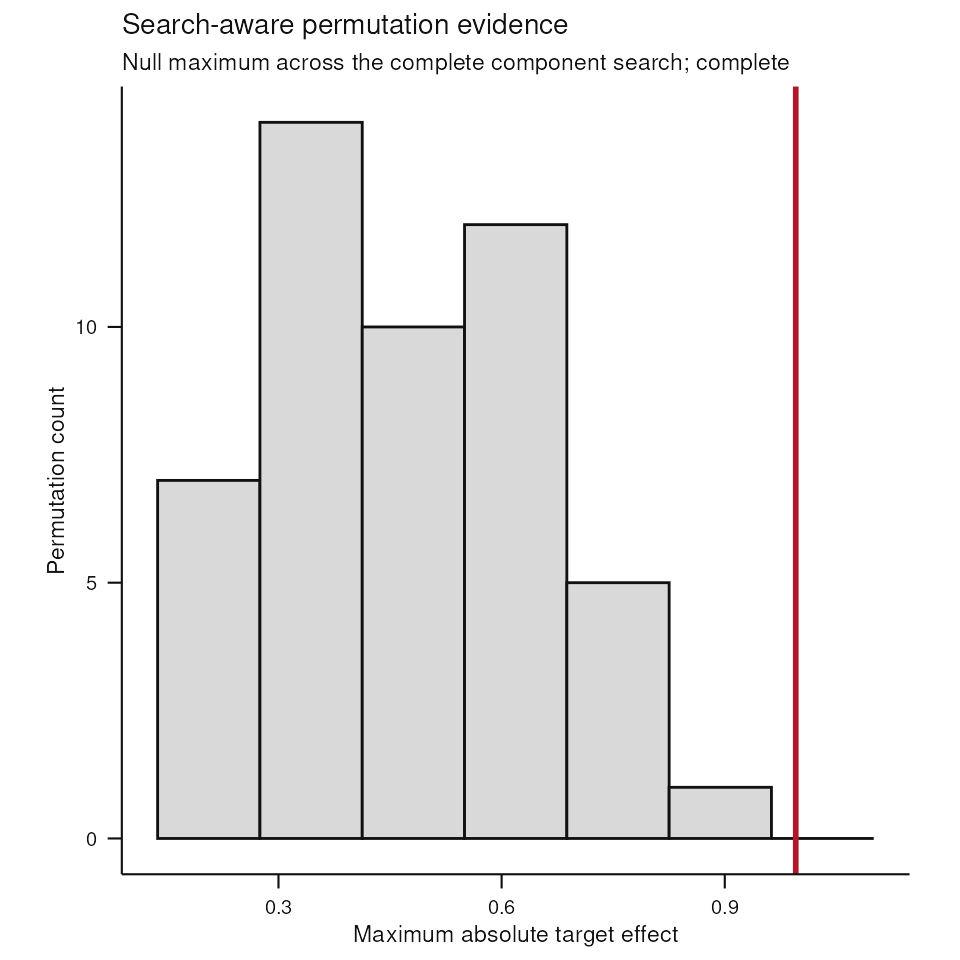

assess_component_identifiability()repeats the complete search under design-preserving resampling and aligns every replicate to the frozen discovery basis. -
confirm_component()records a separate analyst decision and rationale.
Synthetic worked example
The example demonstrates software behavior with synthetic coordinates. It is not biological evidence and does not calibrate a universal decision rule.
primary <- sprintf("sample_%02d", 1:8)
assay_ids <- sprintf("rna_%02d", 1:8)
std <- StateTransitionData(
experiments = list(
rna = SummarizedExperiment::SummarizedExperiment(
assays = list(logcounts = matrix(
seq_len(32L),
nrow = 4L,
dimnames = list(sprintf("gene_%02d", 1:4), assay_ids)
))
)
),
colData = S4Vectors::DataFrame(
condition = factor(
rep(c("control", "treatment"), each = 4L),
levels = c("control", "treatment")
),
severity = c(1, 2, 2, 4, 5, 6, 7, 8),
state = ordered(
c("early", "early", "middle", "middle",
"late", "late", "late", "end"),
levels = c("early", "middle", "late", "end")
),
subtype = factor(rep(c("A", "B", "C", "D"), each = 2L)),
batch = rep(c("run_1", "run_2"), 4L),
mouse_id = sprintf("mouse_%02d", 1:8),
row.names = primary
),
sampleMap = S4Vectors::DataFrame(
assay = factor(rep("rna", 8L), levels = "rna"),
primary = primary,
colname = assay_ids
)
)
std <- declare_sampling_design(std, cross_sectional())
std_metadata <- S4Vectors::metadata(std)
std_metadata$stage1 <- DecompositionResult(
V_star = c(1, 0, 0, 0),
sigma = 1,
coords = list(1:8),
V_k = diag(4)[, 1:2, drop = FALSE],
sigma_k = matrix(c(2, 1), nrow = 1L),
coords_k = list(cbind(
PC1 = c(4, 3, 2, 1, 1, 2, 3, 4),
PC2 = 1:8
)),
k = 2L
)
S4Vectors::metadata(std) <- std_metadataDeclare intent, then build the atlas
The specification owns the target, direction, nuisance fields, and
run identity. Numerical spacing is explicit here because
severity is declared as continuous. Ordered factor labels
instead use their declared level order and never imply unequal
spacing.
specification <- analysis_specification(
id = "synthetic-severity",
target_field = "severity",
target_type = "continuous",
continuous_direction = "increasing",
nuisance_fields = "batch"
)
atlas <- associate_metadata(
std,
specification = specification,
non_analytical_fields = "mouse_id",
dataset_id = "synthetic-cross-sectional-control",
n_resamples = 49L,
seed = 7001L
)
#> Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
#> : pseudoinverse used at 1
#> Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
#> : neighborhood radius 2
#> Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
#> : reciprocal condition number 0
#> Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
#> : There are other near singularities as well. 4
#> Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
#> else if (is.data.frame(newdata))
#> as.matrix(model.frame(delete.response(terms(object)), : pseudoinverse used at 1
#> Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
#> else if (is.data.frame(newdata))
#> as.matrix(model.frame(delete.response(terms(object)), : neighborhood radius 2
#> Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
#> else if (is.data.frame(newdata))
#> as.matrix(model.frame(delete.response(terms(object)), : reciprocal condition
#> number 0
#> Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
#> else if (is.data.frame(newdata))
#> as.matrix(model.frame(delete.response(terms(object)), : There are other near
#> singularities as well. 1
#> Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
#> : pseudoinverse used at 1
#> Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
#> : neighborhood radius 2
#> Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
#> : reciprocal condition number 0
#> Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
#> : There are other near singularities as well. 4
#> Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
#> else if (is.data.frame(newdata))
#> as.matrix(model.frame(delete.response(terms(object)), : pseudoinverse used at 1
#> Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
#> else if (is.data.frame(newdata))
#> as.matrix(model.frame(delete.response(terms(object)), : neighborhood radius 2
#> Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
#> else if (is.data.frame(newdata))
#> as.matrix(model.frame(delete.response(terms(object)), : reciprocal condition
#> number 0
#> Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
#> else if (is.data.frame(newdata))
#> as.matrix(model.frame(delete.response(terms(object)), : There are other near
#> singularities as well. 1
atlas_associations(atlas)
#> metadata_field component component_label estimand
#> 1 condition 1 PC1 signed-rank-biserial
#> 2 condition 2 PC2 signed-rank-biserial
#> 3 severity 1 PC1 spearman
#> 4 severity 2 PC2 spearman
#> 5 severity 1 PC1 adjusted-rank-score-association
#> 6 severity 2 PC2 adjusted-rank-score-association
#> 7 state 1 PC1 kendall-tau-b
#> 8 state 2 PC2 kendall-tau-b
#> 9 subtype 1 PC1 kruskal-wallis-epsilon-squared
#> 10 subtype 2 PC2 kruskal-wallis-epsilon-squared
#> 11 batch 1 PC1 signed-rank-biserial
#> 12 batch 2 PC2 signed-rank-biserial
#> estimate effect_magnitude reference_level comparison_level n_available
#> 1 0.00000000 0.00000000 control treatment 8
#> 2 1.00000000 1.00000000 control treatment 8
#> 3 0.02454403 0.02454403 <NA> <NA> 8
#> 4 0.99402980 0.99402980 <NA> <NA> 8
#> 5 0.02552383 0.02552383 <NA> <NA> 8
#> 6 0.99542929 0.99542929 <NA> <NA> 8
#> 7 -0.04256283 0.04256283 <NA> <NA> 8
#> 8 0.90632697 0.90632697 <NA> <NA> 8
#> 9 0.65000000 0.65000000 <NA> <NA> 8
#> 10 0.91666667 0.91666667 <NA> <NA> 8
#> 11 0.00000000 0.00000000 run_1 run_2 8
#> 12 0.25000000 0.25000000 run_1 run_2 8
#> n_missing n_score_ties n_target_ties evidence_variant proposal_eligible
#> 1 0 8 NA unadjusted TRUE
#> 2 0 0 NA unadjusted TRUE
#> 3 0 8 2 unadjusted TRUE
#> 4 0 0 2 unadjusted TRUE
#> 5 0 8 2 adjusted TRUE
#> 6 0 0 2 adjusted TRUE
#> 7 0 8 7 unadjusted TRUE
#> 8 0 0 7 unadjusted TRUE
#> 9 0 8 8 unadjusted FALSE
#> 10 0 0 8 unadjusted FALSE
#> 11 0 8 NA unadjusted TRUE
#> 12 0 0 NA unadjusted TRUE
#> nuisance_fields
#> 1
#> 2
#> 3
#> 4
#> 5 batch
#> 6 batch
#> 7
#> 8
#> 9
#> 10
#> 11
#> 12
#> cohort_digest
#> 1 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 2 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 3 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 4 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 5 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 6 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 7 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 8 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 9 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 10 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 11 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 12 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> design_digest
#> 1 <NA>
#> 2 <NA>
#> 3 <NA>
#> 4 <NA>
#> 5 9d176423b6495def65761f853c969617e669012b0cc0870bc1f29cbc4d8ac362
#> 6 9d176423b6495def65761f853c969617e669012b0cc0870bc1f29cbc4d8ac362
#> 7 <NA>
#> 8 <NA>
#> 9 <NA>
#> 10 <NA>
#> 11 <NA>
#> 12 <NA>
#> diagnostic p_value q_value effect_conf_low
#> 1 1.000000e+00 1.000000e+00 -0.8437500
#> 2 3.038282e-02 6.076564e-02 1.0000000
#> 3 possible-nonmonotone-association 9.539984e-01 9.539984e-01 -0.9087758
#> 4 5.296154e-07 1.059231e-06 0.8268956
#> 5 9.521636e-01 9.521636e-01 -0.9732012
#> 6 2.379030e-07 4.758061e-07 0.9394658
#> 7 possible-nonmonotone-association 8.940523e-01 8.940523e-01 -0.8261047
#> 8 2.905435e-03 5.810870e-03 0.8647617
#> 9 1.327784e-01 1.666326e-01 0.6701923
#> 10 8.331631e-02 1.666326e-01 0.9216867
#> 11 1.000000e+00 1.000000e+00 -0.9218750
#> 12 6.650055e-01 1.000000e+00 -0.9687500
#> effect_conf_high n_resamples resample_failures
#> 1 0.9375000 49 0
#> 2 1.0000000 49 0
#> 3 0.6445467 49 0
#> 4 1.0000000 49 0
#> 5 0.8122143 49 0
#> 6 1.0000000 49 0
#> 7 0.1304348 49 0
#> 8 0.9888833 49 0
#> 9 0.9775641 49 0
#> 10 0.9945988 49 0
#> 11 0.8593750 49 0
#> 12 1.0000000 49 0
#> resampling_method
#> 1 stratified-biological-unit-bootstrap
#> 2 stratified-biological-unit-bootstrap
#> 3 stratified-biological-unit-bootstrap
#> 4 stratified-biological-unit-bootstrap
#> 5 stratified-biological-unit-bootstrap
#> 6 stratified-biological-unit-bootstrap
#> 7 stratified-biological-unit-bootstrap
#> 8 stratified-biological-unit-bootstrap
#> 9 stratified-biological-unit-bootstrap
#> 10 stratified-biological-unit-bootstrap
#> 11 stratified-biological-unit-bootstrap
#> 12 stratified-biological-unit-bootstrap
#> resampling_plan_digest
#> 1 17f55a77b11a359503abae6eb0560dbcddb9926c7f33942afcbe97ad668281fb
#> 2 17f55a77b11a359503abae6eb0560dbcddb9926c7f33942afcbe97ad668281fb
#> 3 db8db0c4d2f793a4ebb2e670a02bd2df46ceeab0b35ccbd4e133cb9783a986da
#> 4 db8db0c4d2f793a4ebb2e670a02bd2df46ceeab0b35ccbd4e133cb9783a986da
#> 5 db8db0c4d2f793a4ebb2e670a02bd2df46ceeab0b35ccbd4e133cb9783a986da
#> 6 db8db0c4d2f793a4ebb2e670a02bd2df46ceeab0b35ccbd4e133cb9783a986da
#> 7 4dd69435f02789b23320749dfe9a29951b5d2a00bc098dee11fb0741d35c24e1
#> 8 4dd69435f02789b23320749dfe9a29951b5d2a00bc098dee11fb0741d35c24e1
#> 9 a42b0efc9baaa92c85a6dc2773e725b8312b5986d841d8c05bc9bae7eb51a707
#> 10 a42b0efc9baaa92c85a6dc2773e725b8312b5986d841d8c05bc9bae7eb51a707
#> 11 34ee11a603b3526224443611b14a985e40a246bc1e886fd61d8befa903d0b6f6
#> 12 34ee11a603b3526224443611b14a985e40a246bc1e886fd61d8befa903d0b6f6
#> evidence_status
#> 1 estimable-exploratory-only
#> 2 estimable-exploratory-only
#> 3 estimable-exploratory-only
#> 4 estimable-exploratory-only
#> 5 estimable-exploratory-only
#> 6 estimable-exploratory-only
#> 7 estimable-exploratory-only
#> 8 estimable-exploratory-only
#> 9 estimable-exploratory-only
#> 10 estimable-exploratory-only
#> 11 estimable-exploratory-only
#> 12 estimable-exploratory-only
atlas_exclusions(atlas)
#> metadata_field reason
#> 1 mouse_id declared-non-analytical
atlas_evidence_contract(atlas)
#> $version
#> [1] "cross-sectional-v1"
#>
#> $sampling_design
#> [1] "cross_sectional"
#>
#> $row_counts
#> associations observations exclusions
#> 12 80 1
#>
#> $digests
#> associations
#> "aa086c69d980902d418437ac2de6a89bdcdb80050575562c23f74beba474df49"
#> observations
#> "8ae1356309fcff374967c3693b3d903cd45205bb1aef19c5a9af7590735a3e53"
#> exclusions
#> "d7f577eceee6b36862c85beb86a84f7f3f276afd081f6407e645817a7a8a55bf"
#> cohort_members
#> "5f174ac88066d5a13b0fa1aa7908dadfaa73948a754bcc35d3b24ede40349ff4"
#> display_evidence
#> "920e66e8ef26e75bea457e9ebb9e803c1a925be13dbbf4a8b0f1451f3cc34d94"
#>
#> $cohorts
#> metadata_field component evidence_variant
#> 1 condition 1 unadjusted
#> 2 condition 2 unadjusted
#> 3 severity 1 unadjusted
#> 4 severity 2 unadjusted
#> 5 severity 1 adjusted
#> 6 severity 2 adjusted
#> 7 state 1 unadjusted
#> 8 state 2 unadjusted
#> 9 subtype 1 unadjusted
#> 10 subtype 2 unadjusted
#> 11 batch 1 unadjusted
#> 12 batch 2 unadjusted
#> cohort_digest n_available
#> 1 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 2 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 3 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 4 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 5 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 6 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 7 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 8 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 9 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 10 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 11 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 12 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> n_missing
#> 1 0
#> 2 0
#> 3 0
#> 4 0
#> 5 0
#> 6 0
#> 7 0
#> 8 0
#> 9 0
#> 10 0
#> 11 0
#> 12 0
#>
#> $cohort_members
#> metadata_field component evidence_variant primary_sample included
#> 1 condition 1 unadjusted sample_01 TRUE
#> 2 condition 1 unadjusted sample_02 TRUE
#> 3 condition 1 unadjusted sample_03 TRUE
#> 4 condition 1 unadjusted sample_04 TRUE
#> 5 condition 1 unadjusted sample_05 TRUE
#> 6 condition 1 unadjusted sample_06 TRUE
#> 7 condition 1 unadjusted sample_07 TRUE
#> 8 condition 1 unadjusted sample_08 TRUE
#> 9 condition 2 unadjusted sample_01 TRUE
#> 10 condition 2 unadjusted sample_02 TRUE
#> 11 condition 2 unadjusted sample_03 TRUE
#> 12 condition 2 unadjusted sample_04 TRUE
#> 13 condition 2 unadjusted sample_05 TRUE
#> 14 condition 2 unadjusted sample_06 TRUE
#> 15 condition 2 unadjusted sample_07 TRUE
#> 16 condition 2 unadjusted sample_08 TRUE
#> 17 severity 1 unadjusted sample_01 TRUE
#> 18 severity 1 unadjusted sample_02 TRUE
#> 19 severity 1 unadjusted sample_03 TRUE
#> 20 severity 1 unadjusted sample_04 TRUE
#> 21 severity 1 unadjusted sample_05 TRUE
#> 22 severity 1 unadjusted sample_06 TRUE
#> 23 severity 1 unadjusted sample_07 TRUE
#> 24 severity 1 unadjusted sample_08 TRUE
#> 25 severity 2 unadjusted sample_01 TRUE
#> 26 severity 2 unadjusted sample_02 TRUE
#> 27 severity 2 unadjusted sample_03 TRUE
#> 28 severity 2 unadjusted sample_04 TRUE
#> 29 severity 2 unadjusted sample_05 TRUE
#> 30 severity 2 unadjusted sample_06 TRUE
#> 31 severity 2 unadjusted sample_07 TRUE
#> 32 severity 2 unadjusted sample_08 TRUE
#> 33 severity 1 adjusted sample_01 TRUE
#> 34 severity 1 adjusted sample_02 TRUE
#> 35 severity 1 adjusted sample_03 TRUE
#> 36 severity 1 adjusted sample_04 TRUE
#> 37 severity 1 adjusted sample_05 TRUE
#> 38 severity 1 adjusted sample_06 TRUE
#> 39 severity 1 adjusted sample_07 TRUE
#> 40 severity 1 adjusted sample_08 TRUE
#> 41 severity 2 adjusted sample_01 TRUE
#> 42 severity 2 adjusted sample_02 TRUE
#> 43 severity 2 adjusted sample_03 TRUE
#> 44 severity 2 adjusted sample_04 TRUE
#> 45 severity 2 adjusted sample_05 TRUE
#> 46 severity 2 adjusted sample_06 TRUE
#> 47 severity 2 adjusted sample_07 TRUE
#> 48 severity 2 adjusted sample_08 TRUE
#> 49 state 1 unadjusted sample_01 TRUE
#> 50 state 1 unadjusted sample_02 TRUE
#> 51 state 1 unadjusted sample_03 TRUE
#> 52 state 1 unadjusted sample_04 TRUE
#> 53 state 1 unadjusted sample_05 TRUE
#> 54 state 1 unadjusted sample_06 TRUE
#> 55 state 1 unadjusted sample_07 TRUE
#> 56 state 1 unadjusted sample_08 TRUE
#> 57 state 2 unadjusted sample_01 TRUE
#> 58 state 2 unadjusted sample_02 TRUE
#> 59 state 2 unadjusted sample_03 TRUE
#> 60 state 2 unadjusted sample_04 TRUE
#> 61 state 2 unadjusted sample_05 TRUE
#> 62 state 2 unadjusted sample_06 TRUE
#> 63 state 2 unadjusted sample_07 TRUE
#> 64 state 2 unadjusted sample_08 TRUE
#> 65 subtype 1 unadjusted sample_01 TRUE
#> 66 subtype 1 unadjusted sample_02 TRUE
#> 67 subtype 1 unadjusted sample_03 TRUE
#> 68 subtype 1 unadjusted sample_04 TRUE
#> 69 subtype 1 unadjusted sample_05 TRUE
#> 70 subtype 1 unadjusted sample_06 TRUE
#> 71 subtype 1 unadjusted sample_07 TRUE
#> 72 subtype 1 unadjusted sample_08 TRUE
#> 73 subtype 2 unadjusted sample_01 TRUE
#> 74 subtype 2 unadjusted sample_02 TRUE
#> 75 subtype 2 unadjusted sample_03 TRUE
#> 76 subtype 2 unadjusted sample_04 TRUE
#> 77 subtype 2 unadjusted sample_05 TRUE
#> 78 subtype 2 unadjusted sample_06 TRUE
#> 79 subtype 2 unadjusted sample_07 TRUE
#> 80 subtype 2 unadjusted sample_08 TRUE
#> 81 batch 1 unadjusted sample_01 TRUE
#> 82 batch 1 unadjusted sample_02 TRUE
#> 83 batch 1 unadjusted sample_03 TRUE
#> 84 batch 1 unadjusted sample_04 TRUE
#> 85 batch 1 unadjusted sample_05 TRUE
#> 86 batch 1 unadjusted sample_06 TRUE
#> 87 batch 1 unadjusted sample_07 TRUE
#> 88 batch 1 unadjusted sample_08 TRUE
#> 89 batch 2 unadjusted sample_01 TRUE
#> 90 batch 2 unadjusted sample_02 TRUE
#> 91 batch 2 unadjusted sample_03 TRUE
#> 92 batch 2 unadjusted sample_04 TRUE
#> 93 batch 2 unadjusted sample_05 TRUE
#> 94 batch 2 unadjusted sample_06 TRUE
#> 95 batch 2 unadjusted sample_07 TRUE
#> 96 batch 2 unadjusted sample_08 TRUE
plot(atlas)
The table keeps unadjusted and adjusted rows separate. Each row records its complete-cohort and design digests, missingness, tied score and target counts, bootstrap interval, failed-resample count, raw p-value, and Holm-adjusted q-value. The correction family is the declared component set within each metadata field and evidence variant. Bootstrap draws preserve discrete target and nuisance-cell counts and resample complete independent biological units rather than features or technical replicates.
Raw points, a black monotone-constrained fit, and a red flexible
smoother expose the predeclared monotone relationship. A reversal in
level-wise medians adds a possible-nonmonotone-association
warning. The warning and smoother are descriptive and cannot rerank
components.
The evidence summary is the inspection-friendly view of the package-owned internal interpretation contract behind the atlas. It records normalized row counts, exact available-case cohort membership, and deterministic table and cohort-membership digests. Atlas validity checks those values before proposal, permutation, plotting, or serialization consumers can use the evidence. Registered association strategies still calculate the scientific estimands; they do not assemble or validate the surrounding evidence.
One resampling contract, three scientific adapters
Bootstrap and permutation work share one internal policy for deterministic seeds, immutable plan digests, requested and completed counts, failure accounting, and typed unavailable outcomes. The requested count is fixed before refitting. A failed eligible refit remains in that denominator and is never silently replaced with another draw.
The shared mechanics do not erase experimental design. Cross-sectional analyses resample independent biological observations, destructive time courses resample within condition-by-time cells, and repeated designs resample complete subject trajectories. Duplicate trajectory draws receive new replicate-subject identifiers so they remain statistically distinct copies of one source trajectory. Unsupported exchangeability or insufficient distinct assignments produces a typed abstention rather than a fallback sampling rule.
Produce an exploratory proposal
proposal <- propose_component(
atlas,
n_permutations = 49L,
seed = 8001L
)
proposal_ranking(proposal)
#> metadata_field component component_label estimand
#> 1 severity 2 PC2 adjusted-rank-score-association
#> 2 severity 1 PC1 adjusted-rank-score-association
#> estimate effect_magnitude reference_level comparison_level n_available
#> 1 0.99542929 0.99542929 <NA> <NA> 8
#> 2 0.02552383 0.02552383 <NA> <NA> 8
#> n_missing n_score_ties n_target_ties evidence_variant proposal_eligible
#> 1 0 0 2 adjusted TRUE
#> 2 0 8 2 adjusted TRUE
#> nuisance_fields
#> 1 batch
#> 2 batch
#> cohort_digest
#> 1 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> 2 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd
#> design_digest diagnostic
#> 1 9d176423b6495def65761f853c969617e669012b0cc0870bc1f29cbc4d8ac362
#> 2 9d176423b6495def65761f853c969617e669012b0cc0870bc1f29cbc4d8ac362
#> p_value q_value effect_conf_low effect_conf_high n_resamples
#> 1 2.379030e-07 4.758061e-07 0.9394658 1.0000000 49
#> 2 9.521636e-01 9.521636e-01 -0.9732012 0.8122143 49
#> resample_failures resampling_method
#> 1 0 stratified-biological-unit-bootstrap
#> 2 0 stratified-biological-unit-bootstrap
#> resampling_plan_digest
#> 1 db8db0c4d2f793a4ebb2e670a02bd2df46ceeab0b35ccbd4e133cb9783a986da
#> 2 db8db0c4d2f793a4ebb2e670a02bd2df46ceeab0b35ccbd4e133cb9783a986da
#> evidence_status proposal_rank
#> 1 estimable-exploratory-only 1
#> 2 estimable-exploratory-only 2
proposal_provenance(proposal)
#> $association_strategy
#> [1] "cross-sectional-binary-signed-rank-biserial-v1"
#> [2] "cross-sectional-continuous-spearman-v1"
#> [3] "cross-sectional-ordered-kendall-tau-b-v1"
#>
#> $package_version
#> [1] "0.3.0"
#>
#> $sampling_design
#> [1] "cross_sectional"
#>
#> $layer
#> [1] "rna"
#>
#> $input_digest
#> [1] "3d52d2e33dfcc89e909f9957bfdc186f0f0850c94ed15a03bb4a0ebbcbb6c0d3"
#>
#> $state_space_digest
#> [1] "a813a78c92f483ac66eaf5bd9c64dcc8bfb7c7c1428e72874545eb70dbfd7333"
#>
#> $dataset_id
#> [1] "synthetic-cross-sectional-control"
#>
#> $exchangeability
#> [1] "independent"
#>
#> $multiplicity
#> $multiplicity$method
#> [1] "holm"
#>
#> $multiplicity$method_label
#> [1] "Holm"
#>
#> $multiplicity$family_columns
#> [1] "metadata_field" "evidence_variant"
#>
#> $multiplicity$family_description
#> [1] "declared components within each metadata field and evidence variant"
#>
#>
#> $interpretation_module
#> [1] "cross-sectional-v1"
#>
#> $visual_evidence
#> $visual_evidence$monotone_fit
#> metadata_field component_label metadata_numeric monotone_fitted
#> severity.PC1.1 severity PC1 1 2.100000
#> severity.PC1.2 severity PC1 2 2.100000
#> severity.PC1.3 severity PC1 4 2.100000
#> severity.PC1.4 severity PC1 5 2.100000
#> severity.PC1.5 severity PC1 6 2.100000
#> severity.PC1.6 severity PC1 7 3.000000
#> severity.PC1.7 severity PC1 8 4.000000
#> severity.PC2.1 severity PC2 1 1.000000
#> severity.PC2.2 severity PC2 2 2.500000
#> severity.PC2.3 severity PC2 4 4.000000
#> severity.PC2.4 severity PC2 5 5.000000
#> severity.PC2.5 severity PC2 6 6.000000
#> severity.PC2.6 severity PC2 7 7.000000
#> severity.PC2.7 severity PC2 8 8.000000
#> state.PC1.1 state PC1 1 2.333333
#> state.PC1.2 state PC1 2 2.333333
#> state.PC1.3 state PC1 3 2.333333
#> state.PC1.4 state PC1 4 4.000000
#> state.PC2.1 state PC2 1 1.500000
#> state.PC2.2 state PC2 2 3.500000
#> state.PC2.3 state PC2 3 6.000000
#> state.PC2.4 state PC2 4 8.000000
#>
#> $visual_evidence$flexible_fit
#> metadata_field component_label metadata_numeric flexible_fitted
#> severity.PC1.1 severity PC1 1 4.0000000
#> severity.PC1.2 severity PC1 2 2.5000000
#> severity.PC1.3 severity PC1 4 0.9333008
#> severity.PC1.4 severity PC1 5 1.1300477
#> severity.PC1.5 severity PC1 6 1.9172797
#> severity.PC1.6 severity PC1 7 2.8787428
#> severity.PC1.7 severity PC1 8 4.0618107
#> severity.PC2.1 severity PC2 1 1.0501147
#> severity.PC2.2 severity PC2 2 2.4295503
#> severity.PC2.3 severity PC2 4 4.0222331
#> severity.PC2.4 severity PC2 5 5.0000000
#> severity.PC2.5 severity PC2 6 6.0000000
#> severity.PC2.6 severity PC2 7 7.0000000
#> severity.PC2.7 severity PC2 8 8.0000000
#> state.PC1.1 state PC1 1 3.5000000
#> state.PC1.2 state PC1 2 1.5000000
#> state.PC1.3 state PC1 3 2.0000000
#> state.PC1.4 state PC1 4 4.0000000
#> state.PC2.1 state PC2 1 1.5000000
#> state.PC2.2 state PC2 2 3.5000000
#> state.PC2.3 state PC2 3 6.0000000
#> state.PC2.4 state PC2 4 8.0000000
#>
#>
#> $analysis_specification_id
#> [1] "synthetic-severity"
#>
#> $analysis_specification_digest
#> [1] "dedf2403efa8db394d938849f485505df43e2fdaee6e9fcef6ac8a66203d38d4"
#>
#> $target_field
#> [1] "severity"
#>
#> $target_type
#> [1] "continuous"
#>
#> $reference_level
#> character(0)
#>
#> $comparison_level
#> character(0)
#>
#> $ordered_levels
#> character(0)
#>
#> $continuous_direction
#> [1] "increasing"
#>
#> $nuisance_fields
#> [1] "batch"
#>
#> $nuisance_values
#> $nuisance_values$batch
#> sample_01 sample_02 sample_03 sample_04 sample_05 sample_06 sample_07 sample_08
#> "run_1" "run_2" "run_1" "run_2" "run_1" "run_2" "run_1" "run_2"
#>
#>
#> $orientation_anchor
#> character(0)
#>
#> $claim_intent
#> [1] "exploratory"
#>
#> $evidence_contract
#> $evidence_contract$version
#> [1] "cross-sectional-v1"
#>
#> $evidence_contract$sampling_design
#> [1] "cross_sectional"
#>
#> $evidence_contract$row_counts
#> associations observations exclusions
#> 12 80 1
#>
#> $evidence_contract$digests
#> associations
#> "aa086c69d980902d418437ac2de6a89bdcdb80050575562c23f74beba474df49"
#> observations
#> "8ae1356309fcff374967c3693b3d903cd45205bb1aef19c5a9af7590735a3e53"
#> exclusions
#> "d7f577eceee6b36862c85beb86a84f7f3f276afd081f6407e645817a7a8a55bf"
#> cohort_members
#> "5f174ac88066d5a13b0fa1aa7908dadfaa73948a754bcc35d3b24ede40349ff4"
#> display_evidence
#> "920e66e8ef26e75bea457e9ebb9e803c1a925be13dbbf4a8b0f1451f3cc34d94"
#>
#> $evidence_contract$cohorts
#> metadata_field component evidence_variant
#> 1 condition 1 unadjusted
#> 2 condition 2 unadjusted
#> 3 severity 1 unadjusted
#> 4 severity 2 unadjusted
#> 5 severity 1 adjusted
#> 6 severity 2 adjusted
#> 7 state 1 unadjusted
#> 8 state 2 unadjusted
#> 9 subtype 1 unadjusted
#> 10 subtype 2 unadjusted
#> 11 batch 1 unadjusted
#> 12 batch 2 unadjusted
#> cohort_digest n_available
#> 1 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 2 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 3 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 4 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 5 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 6 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 7 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 8 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 9 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 10 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 11 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> 12 d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd 8
#> n_missing
#> 1 0
#> 2 0
#> 3 0
#> 4 0
#> 5 0
#> 6 0
#> 7 0
#> 8 0
#> 9 0
#> 10 0
#> 11 0
#> 12 0
#>
#> $evidence_contract$cohort_members
#> metadata_field component evidence_variant primary_sample included
#> 1 condition 1 unadjusted sample_01 TRUE
#> 2 condition 1 unadjusted sample_02 TRUE
#> 3 condition 1 unadjusted sample_03 TRUE
#> 4 condition 1 unadjusted sample_04 TRUE
#> 5 condition 1 unadjusted sample_05 TRUE
#> 6 condition 1 unadjusted sample_06 TRUE
#> 7 condition 1 unadjusted sample_07 TRUE
#> 8 condition 1 unadjusted sample_08 TRUE
#> 9 condition 2 unadjusted sample_01 TRUE
#> 10 condition 2 unadjusted sample_02 TRUE
#> 11 condition 2 unadjusted sample_03 TRUE
#> 12 condition 2 unadjusted sample_04 TRUE
#> 13 condition 2 unadjusted sample_05 TRUE
#> 14 condition 2 unadjusted sample_06 TRUE
#> 15 condition 2 unadjusted sample_07 TRUE
#> 16 condition 2 unadjusted sample_08 TRUE
#> 17 severity 1 unadjusted sample_01 TRUE
#> 18 severity 1 unadjusted sample_02 TRUE
#> 19 severity 1 unadjusted sample_03 TRUE
#> 20 severity 1 unadjusted sample_04 TRUE
#> 21 severity 1 unadjusted sample_05 TRUE
#> 22 severity 1 unadjusted sample_06 TRUE
#> 23 severity 1 unadjusted sample_07 TRUE
#> 24 severity 1 unadjusted sample_08 TRUE
#> 25 severity 2 unadjusted sample_01 TRUE
#> 26 severity 2 unadjusted sample_02 TRUE
#> 27 severity 2 unadjusted sample_03 TRUE
#> 28 severity 2 unadjusted sample_04 TRUE
#> 29 severity 2 unadjusted sample_05 TRUE
#> 30 severity 2 unadjusted sample_06 TRUE
#> 31 severity 2 unadjusted sample_07 TRUE
#> 32 severity 2 unadjusted sample_08 TRUE
#> 33 severity 1 adjusted sample_01 TRUE
#> 34 severity 1 adjusted sample_02 TRUE
#> 35 severity 1 adjusted sample_03 TRUE
#> 36 severity 1 adjusted sample_04 TRUE
#> 37 severity 1 adjusted sample_05 TRUE
#> 38 severity 1 adjusted sample_06 TRUE
#> 39 severity 1 adjusted sample_07 TRUE
#> 40 severity 1 adjusted sample_08 TRUE
#> 41 severity 2 adjusted sample_01 TRUE
#> 42 severity 2 adjusted sample_02 TRUE
#> 43 severity 2 adjusted sample_03 TRUE
#> 44 severity 2 adjusted sample_04 TRUE
#> 45 severity 2 adjusted sample_05 TRUE
#> 46 severity 2 adjusted sample_06 TRUE
#> 47 severity 2 adjusted sample_07 TRUE
#> 48 severity 2 adjusted sample_08 TRUE
#> 49 state 1 unadjusted sample_01 TRUE
#> 50 state 1 unadjusted sample_02 TRUE
#> 51 state 1 unadjusted sample_03 TRUE
#> 52 state 1 unadjusted sample_04 TRUE
#> 53 state 1 unadjusted sample_05 TRUE
#> 54 state 1 unadjusted sample_06 TRUE
#> 55 state 1 unadjusted sample_07 TRUE
#> 56 state 1 unadjusted sample_08 TRUE
#> 57 state 2 unadjusted sample_01 TRUE
#> 58 state 2 unadjusted sample_02 TRUE
#> 59 state 2 unadjusted sample_03 TRUE
#> 60 state 2 unadjusted sample_04 TRUE
#> 61 state 2 unadjusted sample_05 TRUE
#> 62 state 2 unadjusted sample_06 TRUE
#> 63 state 2 unadjusted sample_07 TRUE
#> 64 state 2 unadjusted sample_08 TRUE
#> 65 subtype 1 unadjusted sample_01 TRUE
#> 66 subtype 1 unadjusted sample_02 TRUE
#> 67 subtype 1 unadjusted sample_03 TRUE
#> 68 subtype 1 unadjusted sample_04 TRUE
#> 69 subtype 1 unadjusted sample_05 TRUE
#> 70 subtype 1 unadjusted sample_06 TRUE
#> 71 subtype 1 unadjusted sample_07 TRUE
#> 72 subtype 1 unadjusted sample_08 TRUE
#> 73 subtype 2 unadjusted sample_01 TRUE
#> 74 subtype 2 unadjusted sample_02 TRUE
#> 75 subtype 2 unadjusted sample_03 TRUE
#> 76 subtype 2 unadjusted sample_04 TRUE
#> 77 subtype 2 unadjusted sample_05 TRUE
#> 78 subtype 2 unadjusted sample_06 TRUE
#> 79 subtype 2 unadjusted sample_07 TRUE
#> 80 subtype 2 unadjusted sample_08 TRUE
#> 81 batch 1 unadjusted sample_01 TRUE
#> 82 batch 1 unadjusted sample_02 TRUE
#> 83 batch 1 unadjusted sample_03 TRUE
#> 84 batch 1 unadjusted sample_04 TRUE
#> 85 batch 1 unadjusted sample_05 TRUE
#> 86 batch 1 unadjusted sample_06 TRUE
#> 87 batch 1 unadjusted sample_07 TRUE
#> 88 batch 1 unadjusted sample_08 TRUE
#> 89 batch 2 unadjusted sample_01 TRUE
#> 90 batch 2 unadjusted sample_02 TRUE
#> 91 batch 2 unadjusted sample_03 TRUE
#> 92 batch 2 unadjusted sample_04 TRUE
#> 93 batch 2 unadjusted sample_05 TRUE
#> 94 batch 2 unadjusted sample_06 TRUE
#> 95 batch 2 unadjusted sample_07 TRUE
#> 96 batch 2 unadjusted sample_08 TRUE
#>
#>
#> $atlas_digest
#> [1] "00ba62ded370bbedf616087a7fcbf84d576dbfec15853570a998afa77d397a8a"
#>
#> $compute_tier
#> [1] "standard-resampled"
permutation <- proposal_permutation_evidence(proposal)
permutation
#> An object of class "PermutationEvidence"
#> Slot "version":
#> [1] "1.1.0"
#>
#> Slot "method":
#> [1] "nuisance-only-residual-permutation"
#>
#> Slot "status":
#> [1] "complete"
#>
#> Slot "n_requested":
#> [1] 49
#>
#> Slot "n_completed":
#> [1] 49
#>
#> Slot "observed_max_effect":
#> [1] 0.9954293
#>
#> Slot "null_max_effect":
#> [1] 0.4844576 0.3995111 0.1702148 0.2568286 0.6153920 0.3318098 0.5892051
#> [8] 0.5707301 0.3995111 0.3011493 0.4582707 0.5136571 0.2925387 0.9131682
#> [15] 0.4594289 0.3995111 0.4594289 0.4582707 0.3797100 0.2237061 0.4565841
#> [22] 0.5615242 0.5630182 0.7201396 0.6380957 0.5421936 0.5630182 0.4582707
#> [29] 0.5892051 0.6415789 0.6415789 0.1964017 0.4058969 0.3709746 0.3613714
#> [36] 0.3995111 0.7146672 0.2041906 0.7146672 0.7055346 0.3613714 0.6367020
#> [43] 0.2581224 0.6380957 0.3573336 0.7463265 0.3957877 0.4565841 0.1712190
#>
#> Slot "search_aware_p_value":
#> [1] 0.02
#>
#> Slot "seed":
#> [1] 8001
#>
#> Slot "cohort_digest":
#> [1] "d4f167505230ab2788195fc248e5496032fd64121ccaf3a1c862b6aa54c746bd"
#>
#> Slot "design_digest":
#> [1] "9d176423b6495def65761f853c969617e669012b0cc0870bc1f29cbc4d8ac362"
#>
#> Slot "diagnostic":
#> [1] ""
plot(proposal)
plot(permutation)
The proposal ranks the adjusted target effect because nuisance fields were declared. Every nuisance-only residual permutation reconstructs a null score and repeats the complete eligible-component search. The resulting p-value therefore compares the observed maximum absolute effect with null maxima, not with one component considered in isolation. It remains supporting exploratory evidence and cannot promote a runner-up.
The default cross-sectional declaration treats canonical biological
samples as independent and exchangeable. If that assumption is not
defensible, set exchangeability = "not_identifiable" in
associate_metadata(). Point evidence remains available,
while permutation returns permutation-not-identifiable and
no search-aware p-value.
If target intent or a defensible permutation structure is absent, the
same call returns a typed ComponentAbstention with
permutation-not-identifiable. A rank-deficient or
target-confounded nuisance design similarly preserves raw evidence while
adjusted nomination abstains.
Assess whether the proposed axis is recoverable
Association bootstraps quantify uncertainty conditional on a fitted Stage 1 basis. Axis-identifiability evidence asks a different question: whether the complete discovery search recovers the same one-dimensional target structure when the biological sampling units are resampled.
The assessment starts from the pre-decomposition
StateTransitionData, the frozen proposal, and the exact
PipelineConfig used for discovery:
assessed <- assess_component_identifiability(
data = raw_data,
proposal = proposal,
config = discovery_config,
non_analytical_fields = "mouse_id",
n_resamples = 499L,
seed = 8301L
)
evidence <- proposal_identifiability(assessed)
evidence$recurrence_summary
evidence$target_recurrence
plot_component_identifiability(assessed)Each replicate reruns the declared decomposition and complete eligible component ranking. Cross-sectional observations are resampled as independent biological units, destructive time courses within condition-by-time cells, and longitudinal data as complete subject trajectories. Duplicated longitudinal draws receive fresh subject identifiers.
The ordinary SVD strategy declares feature-loading cosine as its matching geometry. A global one-to-one assignment retains the complete similarity matrix, selected and competing assignments, margins, unmatched axes, sign orientation, index recurrence, proposal-rank recurrence, subspace angles, spectral gaps, source sampling units, and failed replicates. Sign correction occurs only after matching; no Procrustes rotation is applied.
Before a known-truth calibration is frozen, the structured outcome is
not-calibrated and the evidence remains
estimable-exploratory-only. Singular-value gaps are visible
diagnostics, not effect weights or universal cutoffs. A later calibrated
stable-subspace/no-stable-axis or
no-stable-target-structure outcome is a successful
scientific abstention and cannot be overridden to confirm an individual
component.
Record the analyst decision
confirmed <- confirm_component(
assessed,
index = assessed@recommended_component,
decision = "accept",
rationale = paste(
"Accepted the unique effect-first component in this synthetic",
"implementation example."
)
)
confirmed
canonical_digest(confirmed)confirm_component() is the enforced transition to a
confirmed AnalysisSpecification. Before calibration it
records an explicitly exploratory choice and forces
claim_intent = "exploratory"; it does not label the axis
stable, validated, accepted as evidence, or scientifically supported.
After calibration, only digest-valid stable-axis evidence
permits individual component confirmation. Acceptance must use the
recommended component. A different effect-equivalent component still
requires decision = "override" and remains explicit. An
override cannot bypass a calibrated non-axis,
non-identifiable-design,
outside-calibrated-operating-region, or
unique-winner-failure outcome.

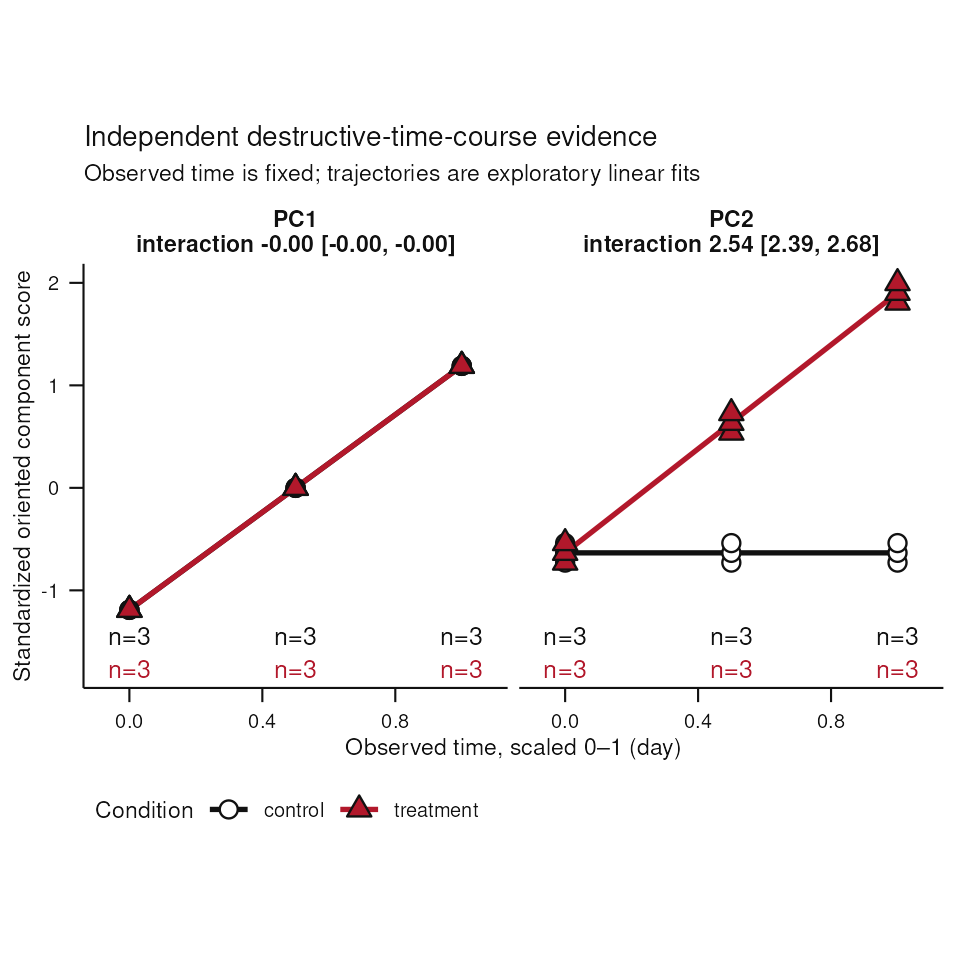

Independent destructive-sampling time courses
A destructive time course observes different biological samples at
each time point. Time is known, but no subject trajectory is observed.
Declare that design explicitly with
independent_time_course(). Do not invent subject IDs or use
longitudinal() for these data.
The synthetic example below plants a condition-by-time divergence across two components. It uses three independent samples in every condition-by-time cell.
time <- rep(c(0, 2, 4), each = 6L)
condition <- factor(
rep(rep(c("control", "treatment"), each = 3L), 3L),
levels = c("control", "treatment")
)
batch <- factor(rep(c("run_1", "run_2", "run_1"), 6L))
primary_time <- sprintf("time_sample_%02d", seq_along(time))
assay_time <- sprintf("rna_time_%02d", seq_along(time))
time_data <- StateTransitionData(
experiments = list(
rna = SummarizedExperiment::SummarizedExperiment(
assays = list(logcounts = matrix(
seq_len(4L * length(time)),
nrow = 4L,
dimnames = list(sprintf("gene_%02d", 1:4), assay_time)
))
)
),
colData = S4Vectors::DataFrame(
condition = condition,
day = time,
batch = batch,
row.names = primary_time
),
sampleMap = S4Vectors::DataFrame(
assay = factor(rep("rna", length(time)), levels = "rna"),
primary = primary_time,
colname = assay_time
)
)
time_data <- declare_sampling_design(
time_data,
independent_time_course(time = "day", time_unit = "days")
)
time_metadata <- S4Vectors::metadata(time_data)
time_metadata$stage1 <- DecompositionResult(
V_star = c(1, 0, 0, 0),
sigma = 1,
coords = list(seq_along(time)),
V_k = diag(4)[, 1:2, drop = FALSE],
sigma_k = matrix(c(2, 1), nrow = 1L),
coords_k = list(cbind(
PC1 = as.numeric(scale(time)),
PC2 = as.numeric(scale(
time * as.integer(condition == "treatment") +
rep(c(-0.15, 0, 0.15), 6L)
))
)),
k = 2L
)
S4Vectors::metadata(time_data) <- time_metadata
time_specification <- analysis_specification(
id = "synthetic-time-divergence",
target_field = "condition",
target_type = "binary",
reference_level = "control",
comparison_level = "treatment",
nuisance_fields = "batch"
)
time_atlas <- associate_metadata(
time_data,
specification = time_specification,
dataset_id = "synthetic-destructive-time-course",
n_resamples = 49L,
seed = 8101L
)
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
atlas_associations(time_atlas)
#> metadata_field component component_label
#> 1 condition 1 PC1
#> 2 condition 1 PC1
#> 3 condition 1 PC1
#> 4 condition 2 PC2
#> 5 condition 2 PC2
#> 6 condition 2 PC2
#> estimand estimate effect_magnitude
#> 1 pooled-signed-rank-biserial 0.000000e+00 0.000000e+00
#> 2 standardized-condition-time-interaction -1.882906e-16 1.882906e-16
#> 3 standardized-condition-time-interaction -1.882906e-16 1.882906e-16
#> 4 pooled-signed-rank-biserial 6.666667e-01 6.666667e-01
#> 5 standardized-condition-time-interaction 2.536695e+00 2.536695e+00
#> 6 standardized-condition-time-interaction 2.536695e+00 2.536695e+00
#> reference_level comparison_level n_available n_missing n_score_ties
#> 1 control treatment 18 0 18
#> 2 control treatment 18 0 18
#> 3 control treatment 18 0 18
#> 4 control treatment 18 0 12
#> 5 control treatment 18 0 12
#> 6 control treatment 18 0 12
#> n_target_ties evidence_variant proposal_eligible nuisance_fields
#> 1 NA pooled-descriptive FALSE
#> 2 18 time-course-unadjusted TRUE
#> 3 18 time-course-adjusted TRUE batch
#> 4 NA pooled-descriptive FALSE
#> 5 18 time-course-unadjusted TRUE
#> 6 18 time-course-adjusted TRUE batch
#> cohort_digest
#> 1 47352523a881695d7504c68ac5cfbe9d4b37ffd0414ba990487f60fdd628d4c2
#> 2 47352523a881695d7504c68ac5cfbe9d4b37ffd0414ba990487f60fdd628d4c2
#> 3 47352523a881695d7504c68ac5cfbe9d4b37ffd0414ba990487f60fdd628d4c2
#> 4 47352523a881695d7504c68ac5cfbe9d4b37ffd0414ba990487f60fdd628d4c2
#> 5 47352523a881695d7504c68ac5cfbe9d4b37ffd0414ba990487f60fdd628d4c2
#> 6 47352523a881695d7504c68ac5cfbe9d4b37ffd0414ba990487f60fdd628d4c2
#> design_digest
#> 1 <NA>
#> 2 84d3cc82aa28ee08dce3d4aed356dac9b4a4040db59dac4d8333c360e58906ea
#> 3 256425b40eb39b6971daca132ce361c12746fd194fff78f8736bbc2b7b513fcd
#> 4 <NA>
#> 5 84d3cc82aa28ee08dce3d4aed356dac9b4a4040db59dac4d8333c360e58906ea
#> 6 256425b40eb39b6971daca132ce361c12746fd194fff78f8736bbc2b7b513fcd
#> diagnostic p_value q_value
#> 1 descriptive-only-not-trajectory-evidence 1.000000e+00 1.000000e+00
#> 2 3.031249e-01 3.031249e-01
#> 3 3.064957e-01 3.064957e-01
#> 4 descriptive-only-not-trajectory-evidence 1.744966e-02 3.489932e-02
#> 5 5.284264e-13 1.056853e-12
#> 6 3.691321e-12 7.382643e-12
#> effect_conf_low effect_conf_high n_resamples resample_failures
#> 1 NA NA 0 0
#> 2 -2.031583e-16 -2.031583e-16 49 0
#> 3 -2.742894e-16 -4.668591e-17 49 0
#> 4 NA NA 0 0
#> 5 2.398492e+00 2.676428e+00 49 0
#> 6 2.387538e+00 2.681744e+00 49 0
#> resampling_method
#> 1 not-requested
#> 2 condition-time-cell-bootstrap
#> 3 condition-time-cell-bootstrap
#> 4 not-requested
#> 5 condition-time-cell-bootstrap
#> 6 condition-time-cell-bootstrap
#> resampling_plan_digest
#> 1 <NA>
#> 2 b41ab0d38c8d4d7c5cdfa08e8497e98b489c05bcdaf3a7b3dd97b142cf1b15c6
#> 3 b41ab0d38c8d4d7c5cdfa08e8497e98b489c05bcdaf3a7b3dd97b142cf1b15c6
#> 4 <NA>
#> 5 b41ab0d38c8d4d7c5cdfa08e8497e98b489c05bcdaf3a7b3dd97b142cf1b15c6
#> 6 b41ab0d38c8d4d7c5cdfa08e8497e98b489c05bcdaf3a7b3dd97b142cf1b15c6
#> evidence_status
#> 1 estimable-exploratory-only
#> 2 estimable-exploratory-only
#> 3 estimable-exploratory-only
#> 4 estimable-exploratory-only
#> 5 estimable-exploratory-only
#> 6 estimable-exploratory-only
plot(time_atlas)
The registered ordinary linear model is
score_std ~ condition * time_scaled + nuisance_terms.
Scores have a deterministic orientation and SD scale. Observed study
time is transformed deterministically to the study’s 0–1 interval, and
the interaction coefficient is the proposal-eligible effect. Raw and
adjusted variants remain separate. The stored evidence records the
analysis cohort, formula, model-matrix rank, time transformation, cell
counts, bootstrap failures, engine controls, and provenance.
Both conditions must occur at two or more overlapping times, every relevant condition-by-time cell must contain independent replication, the design matrix must be full rank, and the number of observations must exceed its degrees of freedom. A failed gate produces a typed abstention. Bootstrap resampling occurs within condition-by-observed-time cells and retains the observed grid and cell counts. Fixed observed times are never permuted. Unadjusted proposals permute condition labels within time; adjusted proposals use nuisance-only residual permutation within time.
time_proposal <- propose_component(
time_atlas,
n_permutations = 49L,
seed = 8201L
)
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
#> Warning in summary.lm(object, ...): essentially perfect fit: summary may be
#> unreliable
#> Warning in summary.lm(fit): essentially perfect fit: summary may be unreliable
proposal_ranking(time_proposal)
#> metadata_field component component_label
#> 1 condition 2 PC2
#> 2 condition 1 PC1
#> estimand estimate effect_magnitude
#> 1 standardized-condition-time-interaction 2.536695e+00 2.536695e+00
#> 2 standardized-condition-time-interaction -1.882906e-16 1.882906e-16
#> reference_level comparison_level n_available n_missing n_score_ties
#> 1 control treatment 18 0 12
#> 2 control treatment 18 0 18
#> n_target_ties evidence_variant proposal_eligible nuisance_fields
#> 1 18 time-course-adjusted TRUE batch
#> 2 18 time-course-adjusted TRUE batch
#> cohort_digest
#> 1 47352523a881695d7504c68ac5cfbe9d4b37ffd0414ba990487f60fdd628d4c2
#> 2 47352523a881695d7504c68ac5cfbe9d4b37ffd0414ba990487f60fdd628d4c2
#> design_digest diagnostic
#> 1 256425b40eb39b6971daca132ce361c12746fd194fff78f8736bbc2b7b513fcd
#> 2 256425b40eb39b6971daca132ce361c12746fd194fff78f8736bbc2b7b513fcd
#> p_value q_value effect_conf_low effect_conf_high n_resamples
#> 1 3.691321e-12 7.382643e-12 2.387538e+00 2.681744e+00 49
#> 2 3.064957e-01 3.064957e-01 -2.742894e-16 -4.668591e-17 49
#> resample_failures resampling_method
#> 1 0 condition-time-cell-bootstrap
#> 2 0 condition-time-cell-bootstrap
#> resampling_plan_digest
#> 1 b41ab0d38c8d4d7c5cdfa08e8497e98b489c05bcdaf3a7b3dd97b142cf1b15c6
#> 2 b41ab0d38c8d4d7c5cdfa08e8497e98b489c05bcdaf3a7b3dd97b142cf1b15c6
#> evidence_status proposal_rank
#> 1 estimable-exploratory-only 1
#> 2 estimable-exploratory-only 2
proposal_permutation_evidence(time_proposal)
#> An object of class "PermutationEvidence"
#> Slot "version":
#> [1] "1.1.0"
#>
#> Slot "method":
#> [1] "within-time-reduced-model-residual-permutation"
#>
#> Slot "status":
#> [1] "complete"
#>
#> Slot "n_requested":
#> [1] 49
#>
#> Slot "n_completed":
#> [1] 49
#>
#> Slot "observed_max_effect":
#> [1] 2.536695
#>
#> Slot "null_max_effect":
#> [1] 7.877586e-01 3.904941e-16 2.076898e-01 1.447149e-01 2.326109e-01
#> [6] 5.918956e-01 8.455651e-01 5.649150e-02 1.408632e-01 5.996967e-02
#> [11] 5.747082e-02 1.156175e-01 8.516310e-01 8.706429e-01 8.008337e-17
#> [16] 6.982300e-02 1.460708e-01 1.434434e+00 9.155033e-01 1.123433e-15
#> [21] 1.035817e+00 8.455651e-01 5.747082e-02 1.142775e-01 9.793756e-01
#> [26] 1.156175e-01 4.336457e-16 1.618580e+00 8.338125e-01 7.766551e-01
#> [31] 9.289772e-01 1.163054e-01 1.163054e-01 1.697716e+00 8.396271e-01
#> [36] 7.782098e-01 7.136830e-01 1.755087e-01 7.291549e-01 7.877586e-01
#> [41] 8.455651e-01 7.238863e-01 6.409876e-16 1.931770e+00 1.628446e+00
#> [46] 2.867922e-01 1.089679e-15 1.541567e+00 1.724125e-01
#>
#> Slot "search_aware_p_value":
#> [1] 0.02
#>
#> Slot "seed":
#> [1] 8201
#>
#> Slot "cohort_digest":
#> [1] "47352523a881695d7504c68ac5cfbe9d4b37ffd0414ba990487f60fdd628d4c2"
#>
#> Slot "design_digest":
#> [1] "256425b40eb39b6971daca132ce361c12746fd194fff78f8736bbc2b7b513fcd"
#>
#> Slot "diagnostic":
#> [1] ""
plot(time_proposal)
This declaration is distinct from two other designs:
- repeated subjects require complete subject trajectories to be resampled and a subject-aware random-effects association strategy;
- ordered cross-sectional states express a declared ordering, not elapsed observed time or within-subject change.
Repeated-subject time courses
Repeated measurements declare both the subject identifier and
observed study time. The registered strategy estimates the standardized
condition-by-time interaction with correlated subject-specific random
intercepts and time slopes:
score_std ~ condition * time_scaled + nuisance_terms + (1 + time_scaled | subject).
subject_id <- rep(sprintf("mouse_%02d", 1:16), each = 4L)
subject_index <- rep(1:16, each = 4L)
repeated_time <- rep(0:3, times = 16L)
repeated_condition <- factor(
rep(rep(c("control", "treatment"), each = 8L), each = 4L),
levels = c("control", "treatment")
)
subject_offset <- 0.12 * sin(subject_index)
subject_slope <- 0.06 * ((subject_index - 1L) %% 8L - 3.5)
repeated_pc1 <- subject_offset +
(0.5 + subject_slope) * repeated_time +
1.4 * (repeated_condition == "treatment") * repeated_time +
0.05 * sin(seq_along(repeated_time))
repeated_pc2 <- 0.1 * cos(subject_index) +
(0.8 - subject_slope) * repeated_time +
0.05 * cos(seq_along(repeated_time))
repeated_primary <- sprintf("repeated_sample_%03d", seq_along(repeated_time))
repeated_assay <- sprintf("repeated_rna_%03d", seq_along(repeated_time))
repeated_data <- StateTransitionData(
experiments = list(
rna = SummarizedExperiment::SummarizedExperiment(
assays = list(logcounts = matrix(
seq_len(5L * length(repeated_time)),
nrow = 5L,
dimnames = list(sprintf("gene_%02d", 1:5), repeated_assay)
))
)
),
colData = S4Vectors::DataFrame(
condition = repeated_condition,
day = repeated_time,
mouse_id = subject_id,
batch = factor(ifelse(subject_index %% 2L, "run_1", "run_2")),
row.names = repeated_primary
),
sampleMap = S4Vectors::DataFrame(
assay = factor(
rep("rna", length(repeated_time)),
levels = "rna"
),
primary = repeated_primary,
colname = repeated_assay
)
)
repeated_data <- declare_sampling_design(
repeated_data,
longitudinal(
subject_id = "mouse_id",
time = "day",
time_unit = "days"
)
)
repeated_metadata <- S4Vectors::metadata(repeated_data)
repeated_metadata$stage1 <- DecompositionResult(
V_star = c(1, 0, 0, 0, 0),
sigma = 1,
coords = list(repeated_pc1),
V_k = diag(5)[, 1:2, drop = FALSE],
sigma_k = matrix(c(2, 1), nrow = 1L),
coords_k = list(cbind(
PC1 = repeated_pc1,
PC2 = repeated_pc2
)),
k = 2L
)
S4Vectors::metadata(repeated_data) <- repeated_metadata
repeated_specification <- analysis_specification(
id = "synthetic-repeated-divergence",
target_field = "condition",
target_type = "binary",
reference_level = "control",
comparison_level = "treatment",
nuisance_fields = "batch"
)
repeated_atlas <- associate_metadata(
repeated_data,
specification = repeated_specification,
non_analytical_fields = "mouse_id",
dataset_id = "synthetic-repeated-time-course",
n_resamples = 49L,
seed = 8202L
)
repeated_proposal <- propose_component(
repeated_atlas,
n_permutations = 49L,
seed = 8203L
)
plot(repeated_atlas)
plot(repeated_proposal)
The complete subject trajectory is the inferential and resampling unit. Bootstrap draws occur within condition and receive fresh subject identifiers, so a duplicated draw remains one trajectory rather than pseudoreplicated observations. Permutation reassigns condition only at subject level and keeps observed times fixed. Missing required observations exclude the complete subject trajectory from a model; the recorded study-time range is not silently contracted.
At least three usable observed times per subject, independent between-subject replication in each condition, and a full-rank fixed-effects design are required. Singular random-effects covariance and optimizer non-convergence are distinct typed abstentions with native diagnostics. Neither outcome triggers a random-intercept-only or independent-observation fallback. Individual trajectories, condition-level fitted divergence, sampling support, dropout, uncertainty, fit failures, and abstention remain visible in the canonical plots.
All three supported sampling designs cross the same package-owned
evidence boundary before the atlas is constructed.
atlas_evidence_contract() returns the same inspection
fields for each design: a module version and sampling design, normalized
row counts, deterministic table digests, cohort summaries, and explicit
cohort membership. The common shape makes downstream evidence auditable
without treating condition-by-time cells and subject trajectories as
exchangeable:
lapply(
list(
cross_sectional = atlas,
independent_time_course = time_atlas,
repeated_subject = repeated_atlas
),
function(x) {
contract <- atlas_evidence_contract(x)
list(
version = contract$version,
sampling_design = contract$sampling_design,
row_counts = contract$row_counts
)
}
)
#> $cross_sectional
#> $cross_sectional$version
#> [1] "cross-sectional-v1"
#>
#> $cross_sectional$sampling_design
#> [1] "cross_sectional"
#>
#> $cross_sectional$row_counts
#> associations observations exclusions
#> 12 80 1
#>
#>
#> $independent_time_course
#> $independent_time_course$version
#> [1] "independent-time-course-v1"
#>
#> $independent_time_course$sampling_design
#> [1] "independent_time_course"
#>
#> $independent_time_course$row_counts
#> associations observations exclusions
#> 6 36 2
#>
#>
#> $repeated_subject
#> $repeated_subject$version
#> [1] "repeated-time-course-v1"
#>
#> $repeated_subject$sampling_design
#> [1] "longitudinal"
#>
#> $repeated_subject$row_counts
#> associations observations exclusions
#> 6 128 3Scientific captions are separate publication artifacts
User-facing landscapeR renderers return ordinary ggplot
objects. Migrated renderers attach a deterministic caption derived from
the same typed evidence used by the graphic; retrieve it with
scientific_caption(plot). The package does not draw this
text inside the plot, so Quarto, R Markdown, and manuscript systems can
render it as a true figure caption. Caption templates preserve
caller-declared experiment, layer, target, level, time, subject, and
nuisance labels exactly. They format stored estimands, uncertainty,
thresholds, missingness, and claim boundaries without recalculating
scientific results.
The same boundary is available directly through
visual_evidence(). It returns a validated
VisualEvidenceView used by the canonical ggplot
renderer:
view <- visual_evidence(proposal)
visual_evidence_surface(view)
visual_evidence_state(view)
visual_evidence_observations(view)
visual_evidence_summaries(view)
visual_evidence_diagnostics(view)
visual_evidence_caption(view)Design-specific display tables are retrieved by their recorded names
with visual_evidence_display(). They contain
already-computed trajectories, interval labels, missing-cell markers,
dropout endpoints, or fitted diagnostic curves as applicable. Plotting
code does not inspect private provenance or reconstruct those scientific
results. The view can support a future compatible interactive adapter,
but ggplot2 remains the canonical reproducible output and interactive
software cannot alter a proposal or abstention.
Registering additional methods
Method authors register an R closure under one
contract:name key with register_strategy().
Keys are write-once by default: a different constructor under an
existing key raises a typed collision error and leaves the accepted
method unchanged, while re-registering a fingerprint-equivalent
constructor with the same code and behavior-relevant captured state is
an idempotent no-op. Primitive functions are unsupported because they
cannot meet the inspectable fingerprint contract.
A deliberate correction uses replace = TRUE with a
non-empty rationale. The accepted registration and any replacement
remain inspectable with strategy_registration_history(),
including chained constructor fingerprints and the replacement
rationale. A registered closure whose behavior-relevant captured state
has changed must be stabilized and registered from a fresh session
rather than silently replacing its recorded identity.
Current boundary
These paths do not reinterpret destructive time courses as longitudinal subjects or claim axis stability before calibration. Association-bootstrap intervals quantify uncertainty while holding the fitted Stage 1 basis fixed; axis-identifiability evidence separately refits Stage 1 and the full component search. The current repeated-subject strategy is linear and frequentist; nonlinear, marginal, robust, or Bayesian trajectory models require separately registered strategies. A real-data confirmation is a documented analyst decision, not proof that the selected coordinate is biologically true.
